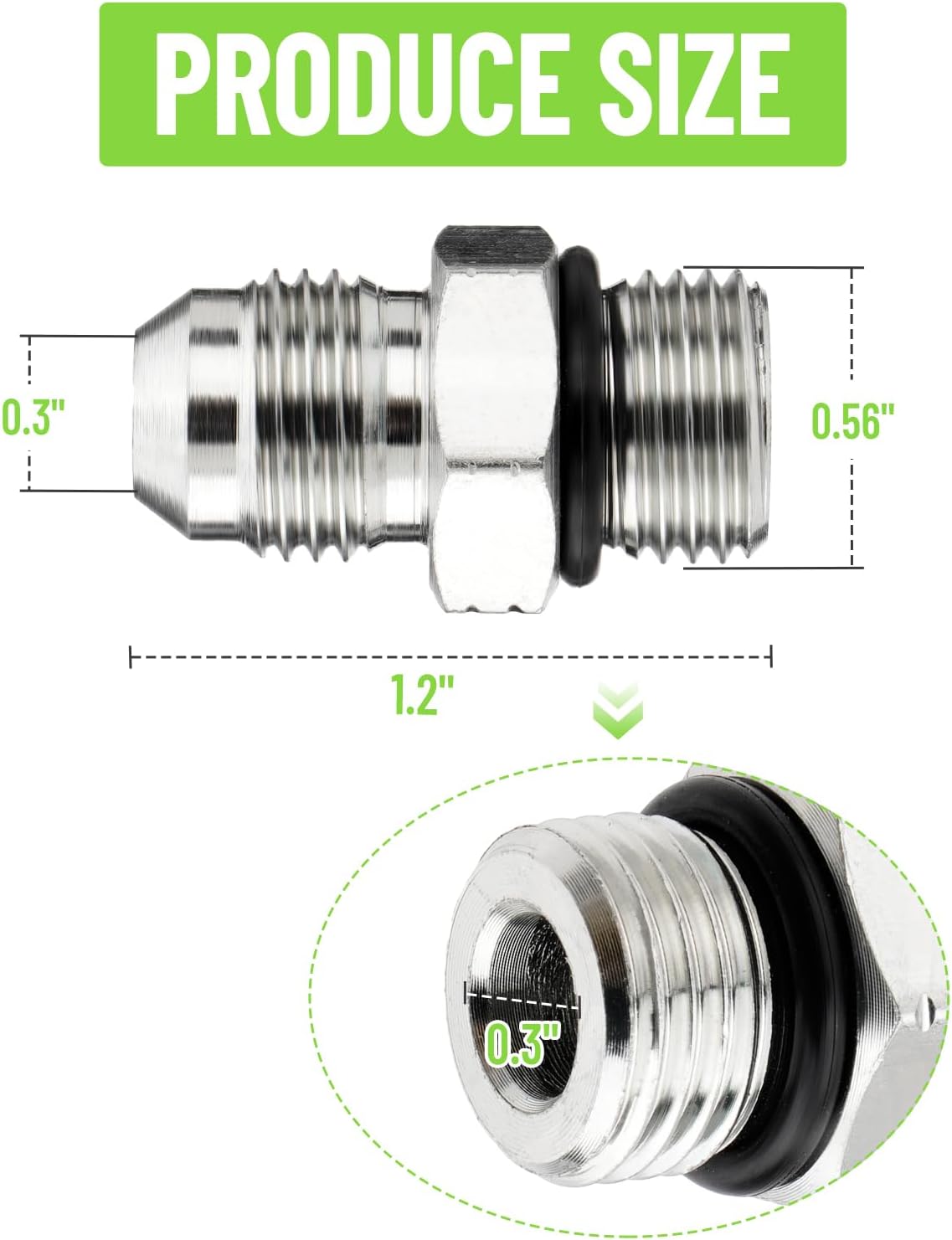

10 Pack Hydraulic Hose Adapter Fittings: 3/8" JIC 37° Male x #6 SAE/ORB Male Thread, Straight Tube Fitting Kits with Protection Cover
Product details
| Management number | 228359363 | Release Date | 2026/05/31 | List Price | $8.80 | Model Number | 228359363 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- #6 SAE/ORB Connector: Designed with parallel threads. When the joint is tightened, a seal is formed by pressing the O-ring in the bottom groove into the inclined surface of the inner hole interface.
- JIC Connector: 37 degree conical sealing design, which improves sealing performance by establishing contact lines between the outer expansion port and the inner conical seat for sealing.
- Essential for Hydraulic Systems: Hydraulic joints securely connect hoses to various components in the hydraulic system, control the flow of hydraulic fluid, maintain pressure, and prevent leakage.
- Widely Application: Hydraulic adapter fittings are made of premium carbon steel, resistant to high temperatures and corrosion, suitable for industrial fluids and various hydraulic applications.
- Good Processing: All important surfaces are well machined including the threads with nice plastic caps, the threads are well machined with no burrs.
| UPC | 739437512625 |
|---|---|
| ASIN | B0D6V226N8 |
| Size | 3/8" JIC Male x 3/8" ORB Male |
| Color | Silver |
| Brand Name | Racewill |
| Unit Count | 10.0 Count |
| Item Weight | 0.28 Kilograms |
| Thread Size | 3/8 |
| Thread Type | SAE/ORB, JIC |
| Manufacturer | Racewill |
| Model Number | 10914407 |
| Material Type | Carbon Steel |
| Connector Type | Adapter |
| Item Type Name | Hydraulic Fittings |
| Exterior Finish | Carbon Steel |
| Item Dimensions | 4 x 4 x 1.6 inches |
| Number of Pieces | 10 |
| Included Components | 10 x Hydraulic Fittings |
| Manufacturer Part Number | 10914407 |
