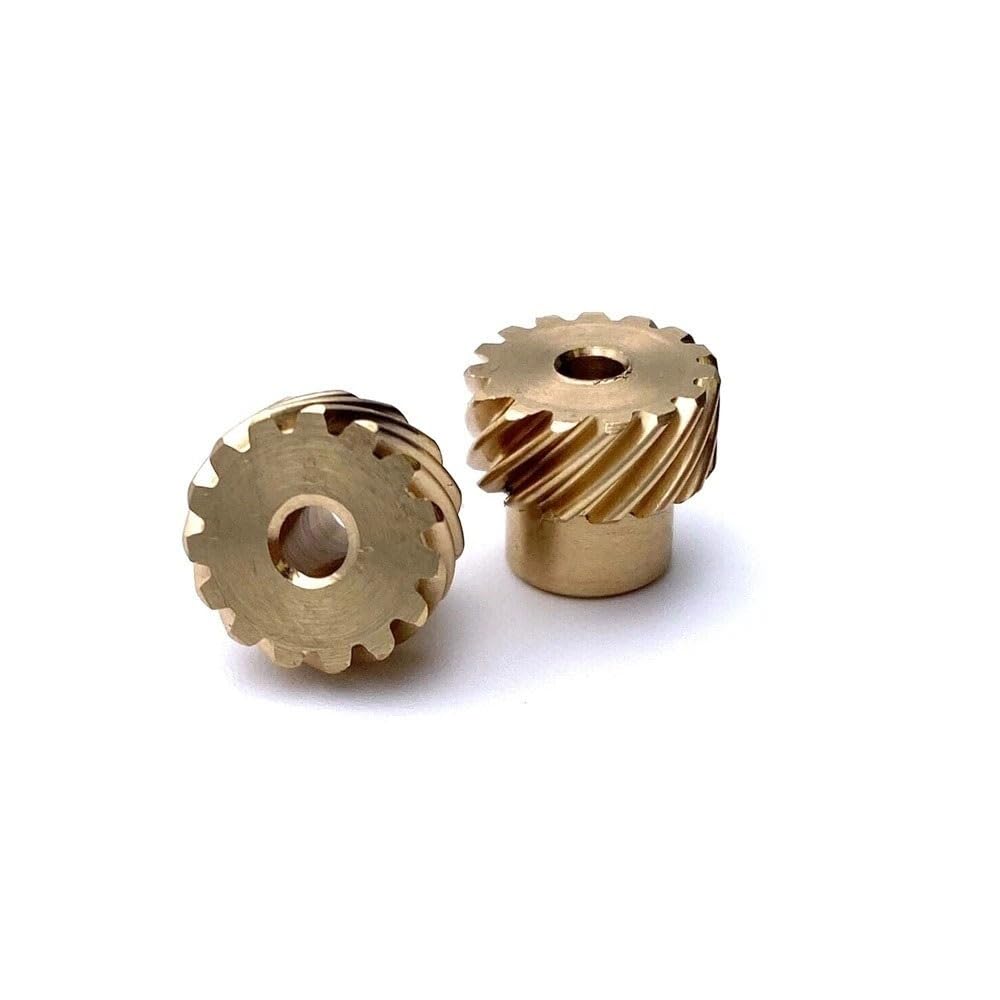

1.5 Module 13 Teeth Right Handed Helical Gear 1.5M 13T 45 Degree Staggered Helical Gear M6 Screw Spiral Mechanical(Bore 10mm Keyway 4x1.8mm)
Product details
| Management number | 220411235 | Release Date | 2026/05/03 | List Price | $12.10 | Model Number | 220411235 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

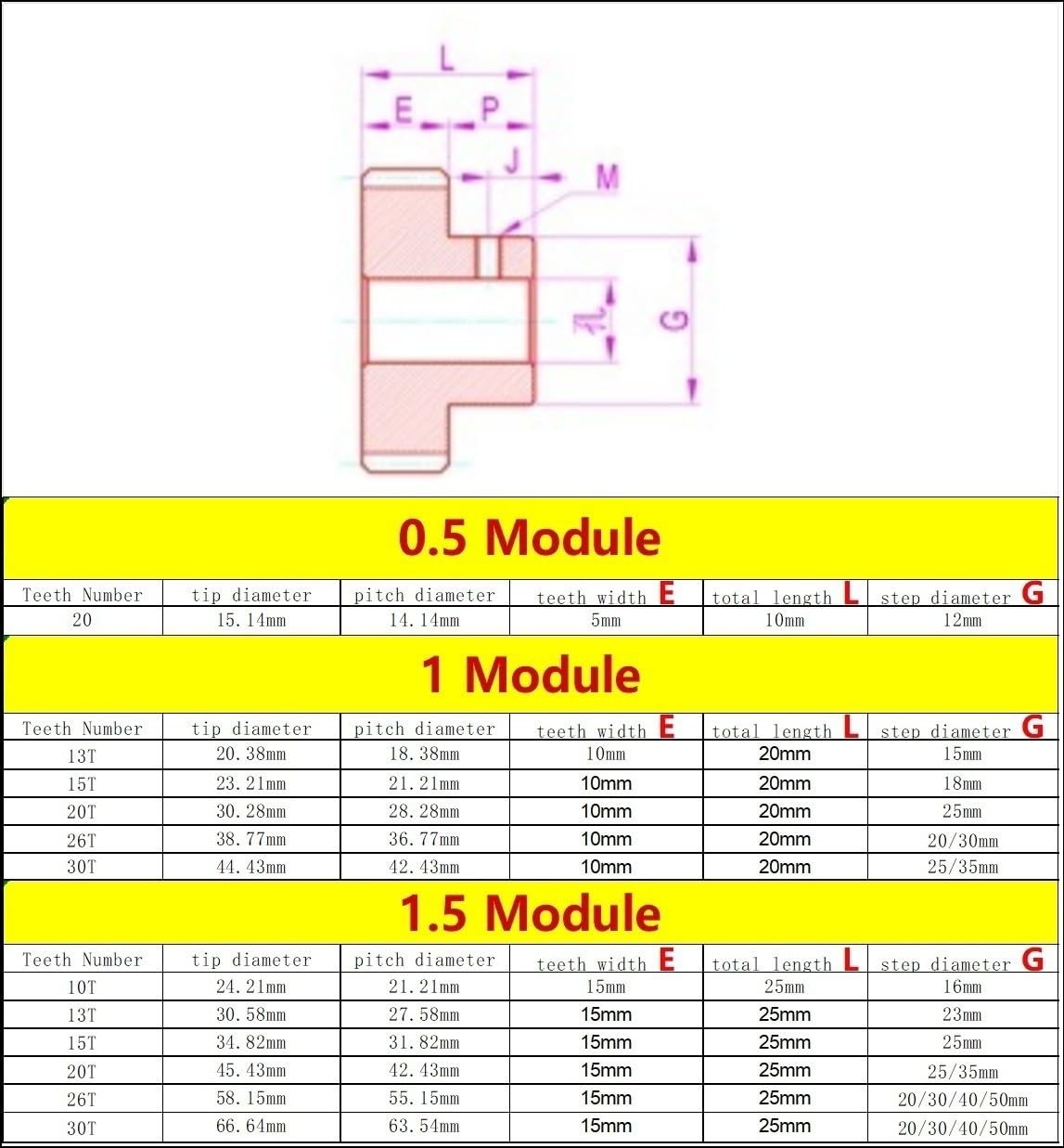

Material: BrassModel: 1.5 module 13 teeth helical gearRotation direction: 45 degrees right handed rotating90 Degree Meshing: The same rotation fit achieves 90 degree transmission180 Degree Meshing: Different rotation directions are coordinated to achieve 180 degrees transmissionGear Diameter: 30.58mmTotal Thickness: 25mmTeeth Thickness: 15mmStep Diameter: 23mmStep Thickness: 10mmScrew: M6 Screw
- Material: Brass
- Model: 1.5M 13T 45 degrees right handed helical gear
- Size: 30.58mm diameter, 15mm teeth thick, 25mm total thick, 23mm step diameter, 10mm step thick
- Precision Engineering: Our gears are meticulously crafted to ensure precise dimensions and flawless gear tooth meshing. This guarantees superior power transfer and operational stability
- Enhanced Transmission Design: Featuring tight gear contact and meshing, our bevel gears excel in power transfer efficiency, providing exceptional load bearing capabilities for demanding applications
| Model | NZQYHBBAQ-BORE10MMKEYWAY4X1.8MM |
|---|---|
| Brand Name | ELILANEY |
| Unit Count | 1.0 Count |
| Item Weight | 100 Grams |
| Part Number | NZQYHBBAQ-BORE10MMKEYWAY4X1.8MM |
| Manufacturer | ELILANEY |
