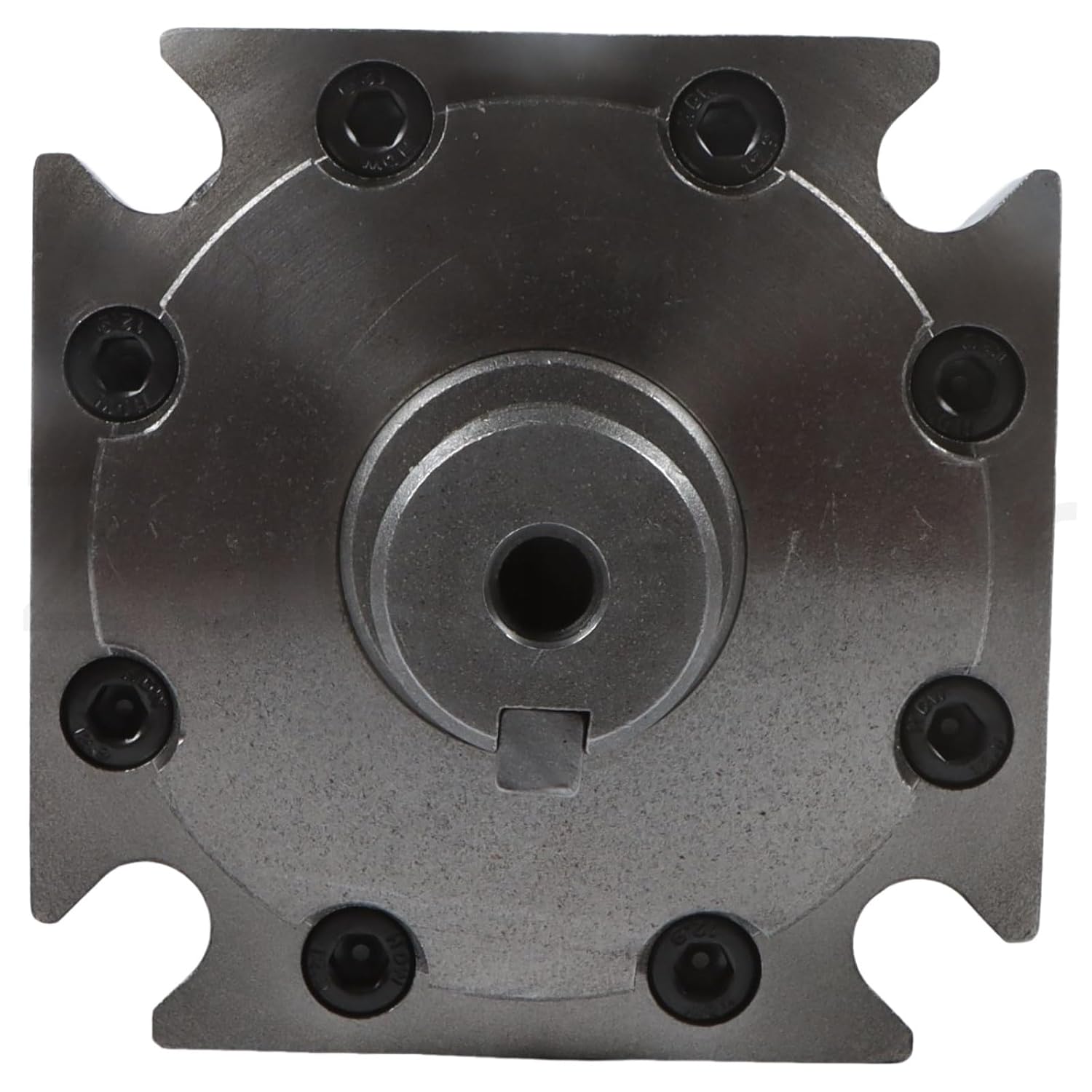

1pcs 109-1101-006 Hydraulic Motor 4000 Series Geroler Motor, 7.90 cu in/rev, 4 Bolt SAE B Mounting Flange, 1-1/4 in. Straight Keyed Shaft, 1-1/16-12 St.THD. O-Ring Ports

Actual Mounting Flange: 4-Bolt Flange - Sae B - with 4 in. Pilot DiameterActual Output Shaft: StraightActual Port Type: 1.0625-12 UN-2B SAE O-Ring Port - Staggered PortsContinuous Flow Rate: 95 L/minContinuous Torque: 3319 inDisplacement: 7.95 cu. in./lDrain Connection Size: 4375-20 UNF-2B O-Ring Port Size -4 with Check ValveIntermittent Pressure: 310 barMaximum Continuous Oil Viscosity: 70 Saybold Universal SecondsMaximum Flow: 25 gpmMaximum Operating Pressure: 3000 psiMaximum Operating Temperature: 180°FMaximum Speed: 722 rpmMaximum RPM - Continuous: 582 rpmMaximum System Operating Temperature: -34°C to 82°CMotor Port Size: 1-1/16–12 UNF-2BMotor Port Type: Straight Thread O-Ring SAEMounting Type: 4 Bolt Flange - 4 in Guide - SAE BRating Notes: Continuous Ratings - Motors can operate continuously at these ratings. / Intermittent Operation - 10% per minute / Peak Operation - 1% per minuteOutput Shaft Size: 1-1/4 in Straight Key - Straight KeyOverall Height: 5.84 in.Overall Length: 11.11 in.Overall Width: 5.84 in.Port Configuration: 1.0625-12 UN-2B SAE O-Ring Ports - Staggered PortsPort Orientation: Staggered PortsReplacement Balancing Ring: 006 Design -21316-000 Requires 1Replacement Buna Seal Kits: 006 Style - Rear Seal Kit 61234-000, 006 Style - Shaft Seal Kit 61281-000 - Requires 1 of EachReplacement Actuator - Sold Separately: 006 Design - 21372-002 - 1 RequiredReplacement Actuator Valve: 006 Design - 8510-000 - Requires 1Replacement Geroler - Sold Separately: 006 Design - 8464-002 - Requires 1Replacement Bearing Seat Side Fnt: 006 Design - 23170-002 - Requires 1Replacement Long Cap Nut End: 006 Design - 16292-100 - Requires 8Replacement Mounting Flange: 006 Design - 23171-002 - Requires 1Rplc Output Shaft and Bearing Kit: 006 Design - 23310-001 - Requires 1Replacement Plate Valve: 006 Design - 8504-000 - Requires 1Replacement Back Housing: 006 Design - 23382-003 - 1 RequiredReplacement Valve Sold Separately: 006 Design - 8500-000 - Requires 1Replacement Viton Seal Kit: 006 Design - 61248-000 - Requires 1 pcsSeal Type: StandardSeries: 4000 - StandardShaft Type: Keyed

• 【Part Number】109-1101-006 1091101006 109-1101 1091101
• 【Application】For Eaton Char-Lynn 4000 Series
• 【High efficiency】 Advanced design and manufacturing processes ensure that the hydraulic pump can efficiently convert mechanical energy into hydraulic energy, reducing energy loss
• 【Energy-saving design】Some models use variable displacement technology to adjust the output flow according to actual needs to achieve more energy-saving operation
• 【Warm Tips】Please check the specifications carefully to make sure you get the product you want. If you are not sure, you can send us your model number.
