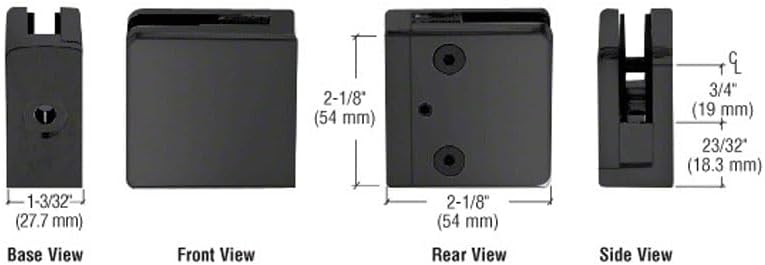

Matte Black Z-Series Square Type Flat Base Stainless Steel CRL Clamp for 3/8" Glass

Designed to Accommodate 3/8" (10 mm) Glass Thickness The Ideal Clamp for Use on Mezzanines, Partitions, Railings and Windbreaks Steel Pin Available for Additional Glass Support This CRL Z-Series Square Type Flat Base Glass Clamp is designed to be used on 3/8 inch (10 millimeter) glass thickness. Constructed from either zinc or stainless steel, the clamps are the perfect solution for partitions, railings, windbreaks and countless other projects. Color: Matte Black Width: 2-1/8 in (54 mm) Height: 2-1/8 in (54 mm) Minimum Order: 1 Each Additional Product Information: For securing the Z-Clamp to thin wall tubing (less than 1/8 inch), use CRL ZBOLT Socket Head Cap Bolt and ZRNUT Rivet-Nut. For installation, drill a 1/2 inch (12 millimeter) hole, insert the riv-nut, align the clamp with the bolt and drilled hole and start threading the bolt into the nut which results in compressing the nut. 1/2 inch (12 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support. SPECIFICATIONS Glass Thickness: 3/8 inch (10 millimeter) glass Base Design: Flat For Use With: Square tubing or other flat surfaces Material: Choice of Zinc Constructed or Stainless Steel. Stainless Steel or Powder Coated Painted Zinc Clamps are suggested for more durability in exterior applications For 1/2 inch (12 millimeter) glass, a 9/16 inch (14 millimeter) hole is required if using the steel pin (included with the clamp) for additional glass support. Includes: Rubber Gaskets, Grommet and Steel Pin (for optional use)

• Designed to Accommodate 3/8" (10 mm) Glass Thickness
• The Ideal Clamp for Use on Mezzanines, Partitions, Railings and Windbreaks
• Steel Pin Available for Additional Glass Support
• Color: Matte Black
• Width: 2-1/8 in (54 mm)
• Height: 2-1/8 in (54 mm)
• Minimum Order: 1 Each
